Download Plans for Manufacturing a 2v Silo Dome with 3 Extensions with Dual Covering Hubs
2v Silo Domes with 3 Extension Examples
2v Silo Dome with 3 Extensions Plans
20' Palm Tree To Cover for Winter

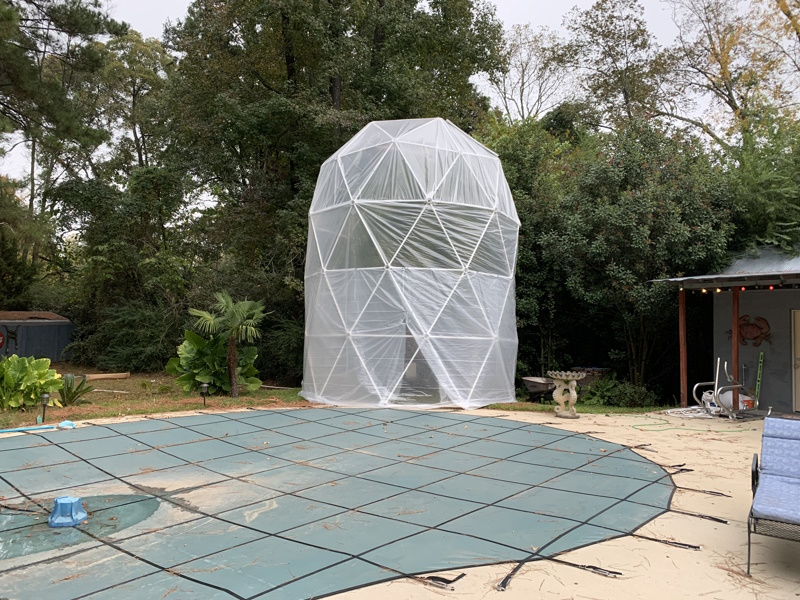

20' Palm Tree under Silo Dome with 3 Extensions
20' Palm Tree under 3 Ext. Silo Dome with Vent
56 hubs, 155 struts.
The 2v Silo Dome 3 Extensions produces a tall vertical growing space for covering trees in winter.
Listed 2v Silo Dome 3 Extensions Sizes: 11' wide, 14' tall to 20' wide, 26' tall.
You can build larger or smaller 2v Silo Domes by adjusting the strut lengths, contact us for details.
2v Silo Dual Covering Hubs
Requires a Chop Saw to Manufacture.
5-way Red Hubs
6-way Blue Hubs
The Dual Covering Hubs are used for building geodesic greenhouses in cold weather environments.
The Dual Covering Hubs allows a Greenhouse to be covered with 2 layers of plastic, one on the inside and one on the outside of the dome.
This creates a "dead air space" between the two layers for plastic for better insulation.
The Dual Covering Hubs require a chop saw to manufacture.
Tools Needed to Manufacture the Dual Covering Hubs: A Power Hand Drill or Drill Press, and a Chop Saw for cutting the hubs and rings.
Each 2v Silo Dome with 3 Extensions Download Contains:
A Manufacturing Manual with step by step details on how to make our patented Dual Covering hubs. (36 pages with color photographs for each step.)
The correct bit size for drilling the hub outer collar for each strut diameter and type.
Complete instructions for using 1", 3/4", 1/2" Schedule 40 PVC Pipe, or 1", 3/4", 1/2" EMT Conduit, or 32mm, 25mm OD Metric Pipe for making your own Geodesic Dome struts.
The lengths for cutting the geodesic dome struts to make each dome size.
Videos on how to make the struts from PVC or Bamboo.
An assembly manual, assembly video and construction diagram for building the dome.
A 2v Silo Dome with 3 Extensions Calculator to help you build a dome of any size.
A License that authorizes you to legally manufacture up to 3 Geodesic Domes using our patented hub design.
Ongoing Customer support by email or telephone to answer any of your technical questions.
Download a Complete Set of Instructions and Manufacturing License for Building a 2v Silo Dome with 3 Extensions Using our Patented Hub Design
2v Geodesic Silo Dome with 3 Extensions Plans (with Dual Covering Hubs) - $56.00 56 hubs, 155 struts.
Download 2v Geodesic Silo Dome with 3 Extensions Plans (with Dual Covering Hubs) Price: $56.00
