2V Geodesic Sphere Calculator

Click Here to Call Us:
1-931-858-6892



How to Use the Sphere Calculator

1. Select Hub Size:
Select "No Hubs" to get the true "chord" length for each strut, which is the full distance for the strut between each geodesic sphere vertex.
For most sphere construction methods, you will use the "No Hubs" selection.
With our Zip Tie Domes Hub Design, the geodesic sphere vertex is located in the middle of our "Center Ring".
When using our Hubs, the width of our Center Ring must be added to the strut length to give the true geodesic sphere dimensions.
Select Standard 4" Hubs for calculating domes with our 4" Standard Hubs or Dual Covering Hubs, which have a 2.375" Center Ring. These hubs are used with 1" PVC pipe for struts.
Select Super 6" Hubs for calculating domes with our new 6" Super Hubs, which have a 3.5" Center Ring. These hubs are used with 1.5" PVC pipe for struts.
Select Mega 8" Hubs for calculating domes with our proposed 8" Mega Hubs, which will have a 4.5" Center Ring. These hubs will be used with 2" PVC pipe for struts.

2. Feet or Meters
Click the button for "Meters" if you are using metric measurements.

3. Data Entry:
Enter a number with or without a decimal fraction in any of the number fields on the left. (For example, enter "5" or "3.3333")
Click the Calculate Button. All of the other numbers will be automatically calculated.
The Blue Struts are always the longest struts. If you know your longest strut length, enter your data for the longest strut length in the Blue Strut field.
To build a strong sphere, the longest strut should not be more than 6' long.

Cost Calculation and Material Utilization Chart
The default "Length of Pipe" for cutting your struts has been set to 10'. You can change this to 20' or whatever length of pipe you have to cut for your struts.
You can also update the "Cost Per Pipe" amount, and click the Calculate field, and the "Total Cost of Materials" amount will be calculated at the bottom of this section.
If you are cutting 4' struts, consider using 20' lengths of pipe, as there will be less waste as compared to cutting 4' lengths from 10' pipe.

2v Sphere Calculator

2v Geodesic Sphere
2v Sphere

Select Hub Size
No Hubs:     Standard 4" Hubs:     Super 6" Hubs:     Mega 8" Hubs:
Feet:   Meters:
Enter

Convert to Feet & Inches
Chord


Numbers Only

Sphere Radius/Height

0 0"



Numbers Only

Length of 60 Blue "A" Struts

0 0"

.61803



Numbers Only

Length of 60 Red "B" Struts

0 0"

.54653



Numbers Only

Sphere Diameter

0 0"



Numbers Only

Sphere Equator Circumference

0 0"




12

Number of Red 5-Way Hubs



30

Number of Blue 6-Way Hubs



42

Number of Center Rings



240

Number of Zip Ties to Construct the Sphere



0

Sphere Surface Area (Square )



0

Sphere Volume (Cubic )



0

Total Length of All Struts Added Together ()

Cost Calculation and Material Utilization Chart






Length of Pipe:

Cost Per Pipe:




Blue "A" Struts




Blue "A" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (60) Blue "A" Struts:

0




Number of Blue "A" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Blue "A" Struts Created from the first 0 Pipes:

0




Number of Blue "A" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 60 Blue "A" Struts:

0




Red "B" Struts




Red "B" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (60) Red "B" Struts:

0




Number of Red "B" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Red "B" Struts Created from the first 0 Pipes:

0




Number of Red "B" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 60 Red "B" Struts:

0




COST OF MATERIALS GRAND TOTALS:




Total Waste for All Struts:

0




Number of Uncut Pipe/Materials Needed:

0




Total Cost of Materials @ $4.50 Each:

$



Sphere Weight Chart


Weight Chart 1" PVC Sch.40 1" PVC Sch.80 1.5" PVC Sch.40 2" PVC Sch.40 3/4" EMT 1" EMT 5/8" Iron Rebar #5 3/4" Iron Rebar #6 1/2" Basalt Rebar #4 5/8" Basalt Rebar #5
Lbs Per Linear Ft .32 .41 .51 .68 .435 .64 1.043 1.502 .237 .46
60 Blue "A" Struts 0 0 0 0 0 0 0 0 0 0
60 Red "B" Struts 0 0 0 0 0 0 0 0 0 0
Total Weight of Struts (lbs) 0 0 0 0 0 0 0 0 0 0
Weight of Hubs, Rings, Zip Ties 14.8 14.8 36.6 65.7 14.8 14.8 14.8 14.8 14.8 14.8
Total Sphere Weight (lbs) 0 0 0 0 0 0 0 0 0 0


Sphere Construction Sequence

(See 2V Manual for Details)




1. Assemble the Foundation Ring.

Top View

Perspective View

2. Lay out the Strut Pattern.

Top View

3. Connect the Struts to
the Foundation Ring.

Top View

Perspective View

4. Attach the Color Coded Hubs.

Attach the Red Hubs
to the Red Triangles.
Attach the Blue Hubs
to the Blue Triangles.

5. Connect the Top of the First Tier
with Red Struts.

Top View

Perspective View

6. Set the Red Struts and
Blue Hubs for the Second Tier.

Top View

Perspective View

7. Set the Blue Struts for the Second Tier.

Top View

Perspective View

8. Connect the Top of the Second Tier
with Blue Struts.

Top View

Perspective View

9. Complete the Sphere with Red Struts.

Top View

Perspective View



2v Sphere Construction Diagram



Step 1: Build the 2v dome using the 2V Manual.

2v Geodesic Sphere Construction Diagram

Step 2: Turn the dome upside down.

2v Geodesic Sphere Construction Diagram

Step 3: Build the second dome on the foundation ring of the first dome.

2v Geodesic Sphere Construction Diagram

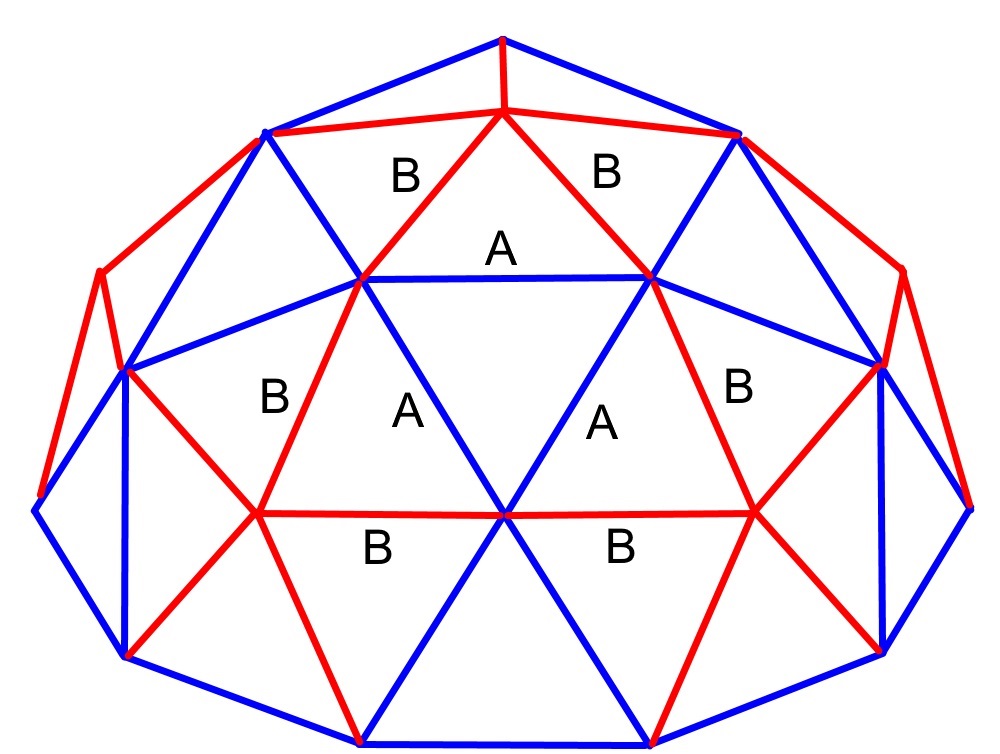

2 Frequency Tessellation Diagram

2v Geodesic Sphere Tessellation Diagram



Blue "A" Chord Factor:   .61803

Red "B" Chord Factor:   .54653

Sphere Panels / Coverings



A 2v Sphere Will Require Panels / Coverings for:





20 A-A-A Equilateral Triangles

60 B-A-B Isoceles Triangles




A-A-A Triangles

B-A-B Triangles



Total Triangles: 80

--------------------------------------------



Triangle Dimensions



20 A-A-A Equilateral Triangles


A-A-A Triangle
A-A-A Triangles
Altitude Xa Decimal 0
Feet and Inches 0 0"


A-A-A
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

A

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each A-A-A Triangle 0 Square



60 B-A-B Isoceles Triangles


B-A-B Triangle
Base = "A"
B-A-B Triangles
Altitude Xa Decimal 0
Feet and Inches 0 0"

B-A-B Triangle
Base = "B"
B-A-B Triangles
Altitude Xb Decimal 0
Feet and Inches 0 0"


B-A-B
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

A

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

B

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each B-A-B Triangle 0 Square
