At this time, only the Tunnel Dome Plans are available for download.
The full kits and "hubs only" kits will be ready later this year.
Download Geodesic Tunnel Dome Plans
These Tunnel Domes use our patented hub design.
Each download comes with a license so that you can legally make your own geodesic tunnel dome hubs.
Download Tunnel Dome 0 Plans
Build a Tunnel Dome with 0 Extensions
Download Tunnel Dome 1 Plans

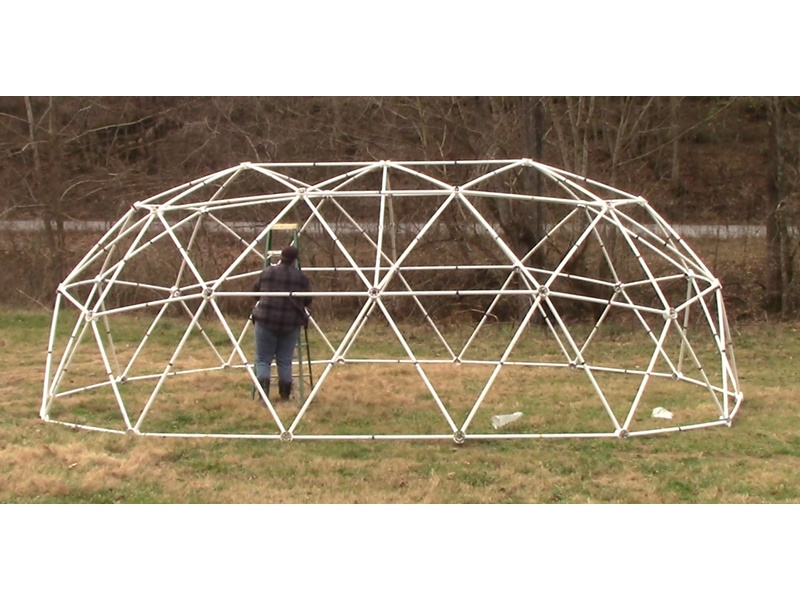

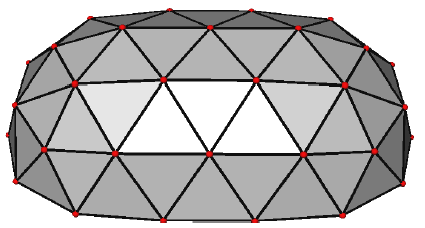

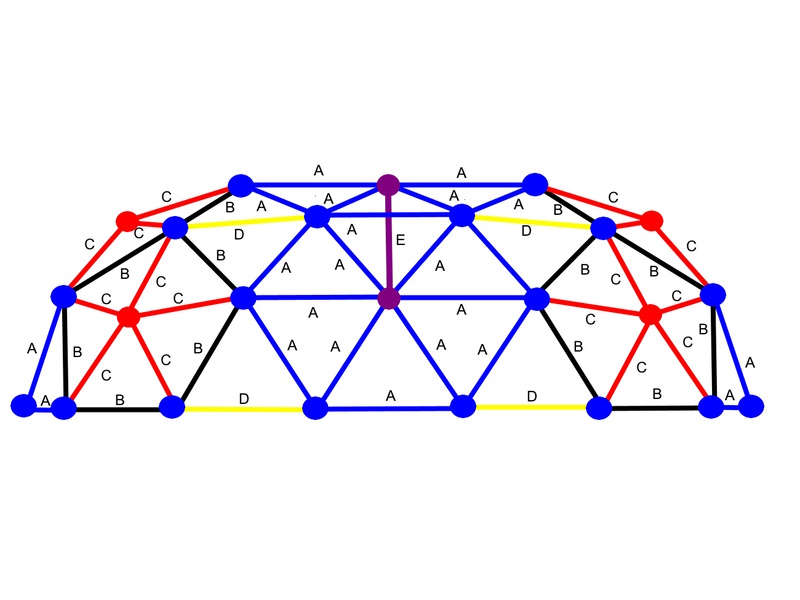

Build a Tunnel Dome with 1 Extensions
Download Tunnel Dome 2 Plans

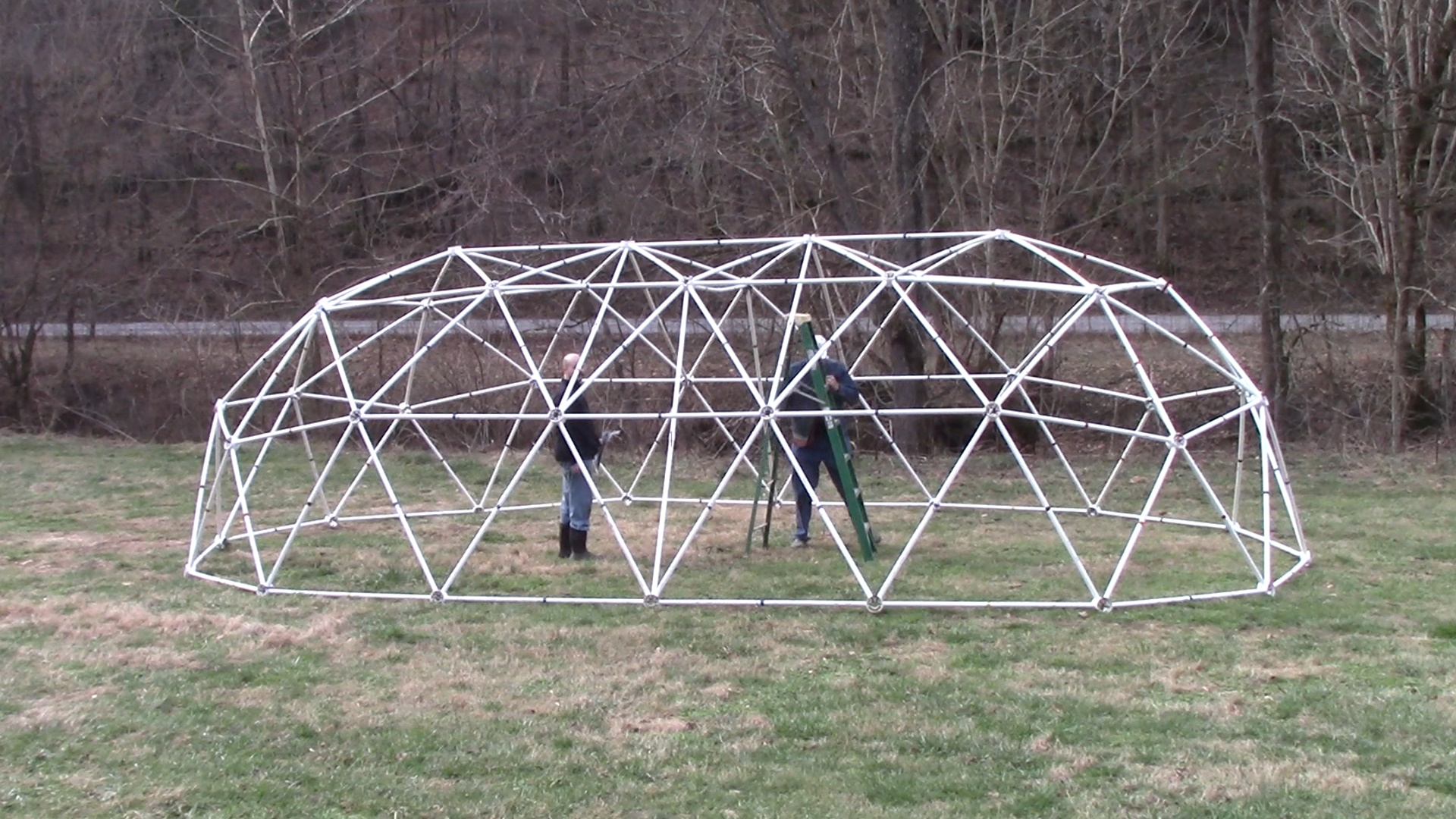

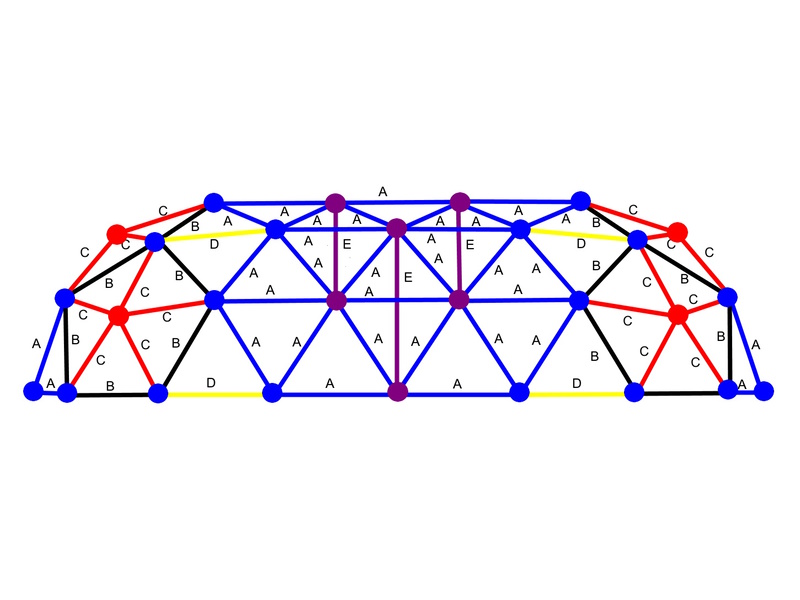

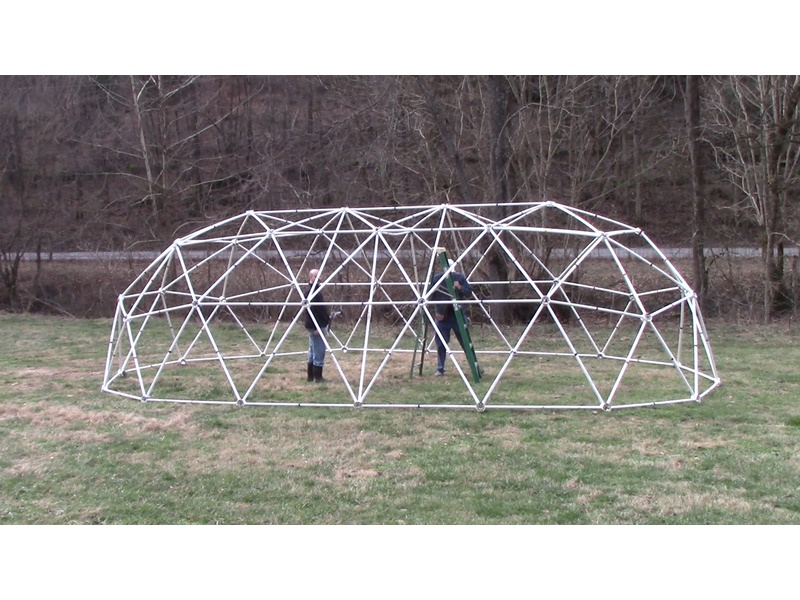

Build a Tunnel Dome with 2 Extensions
Download Tunnel Dome 3 Plans

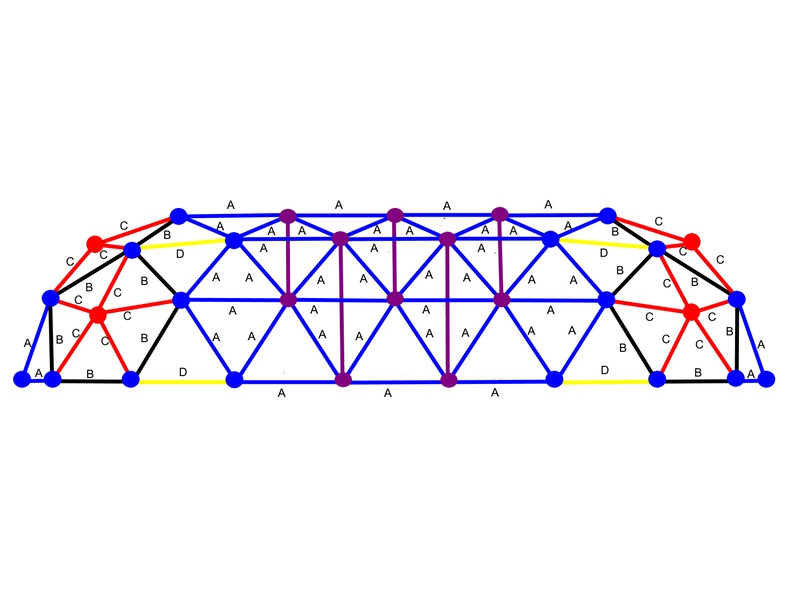

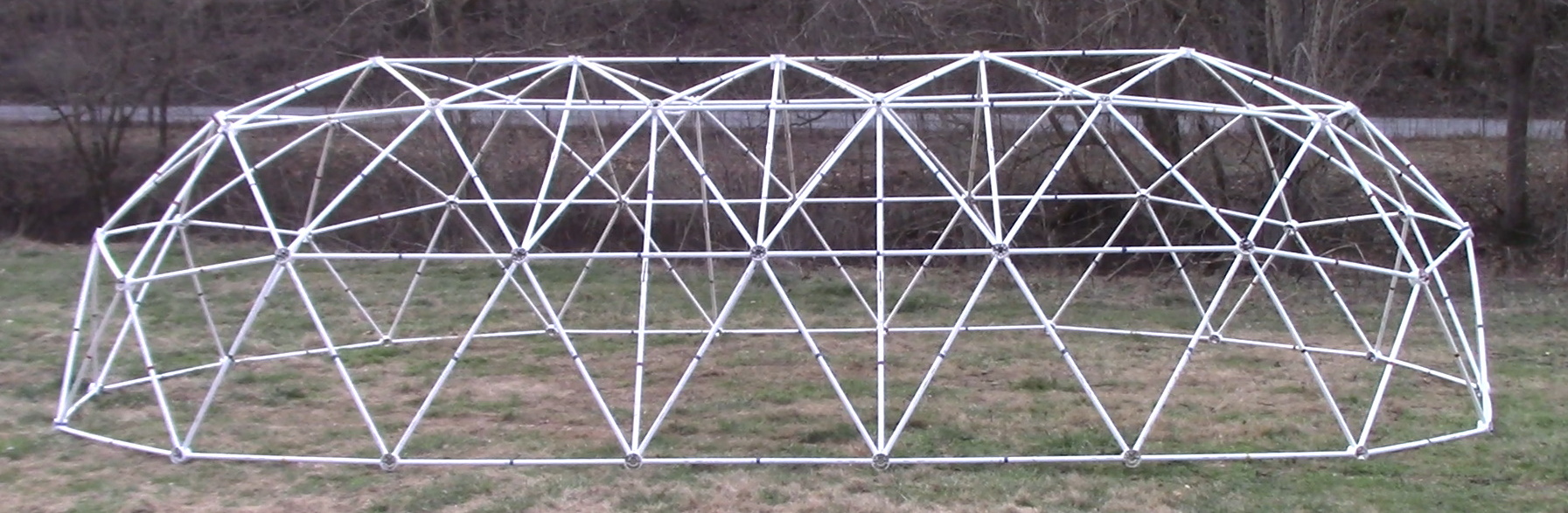

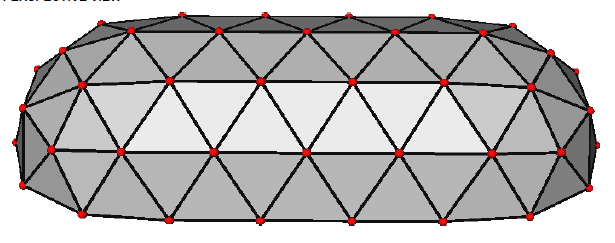

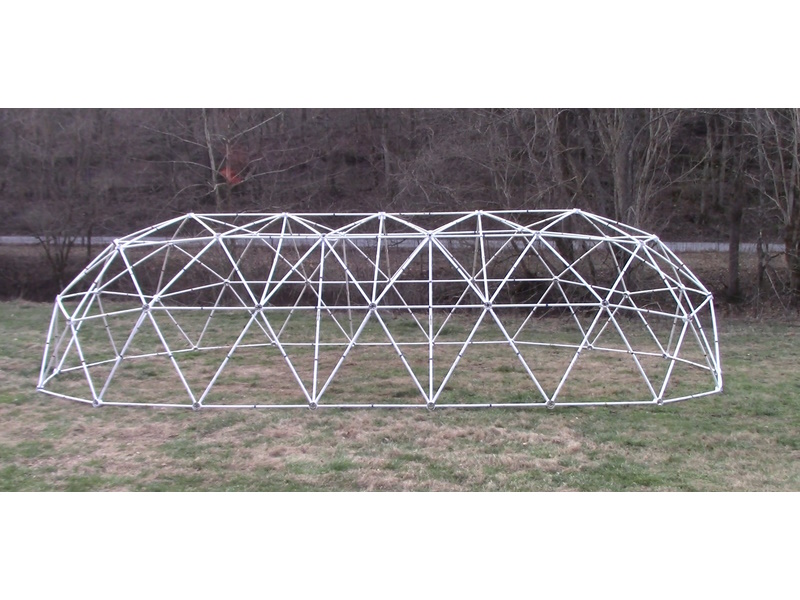

Build a Tunnel Dome with 3 Extensions

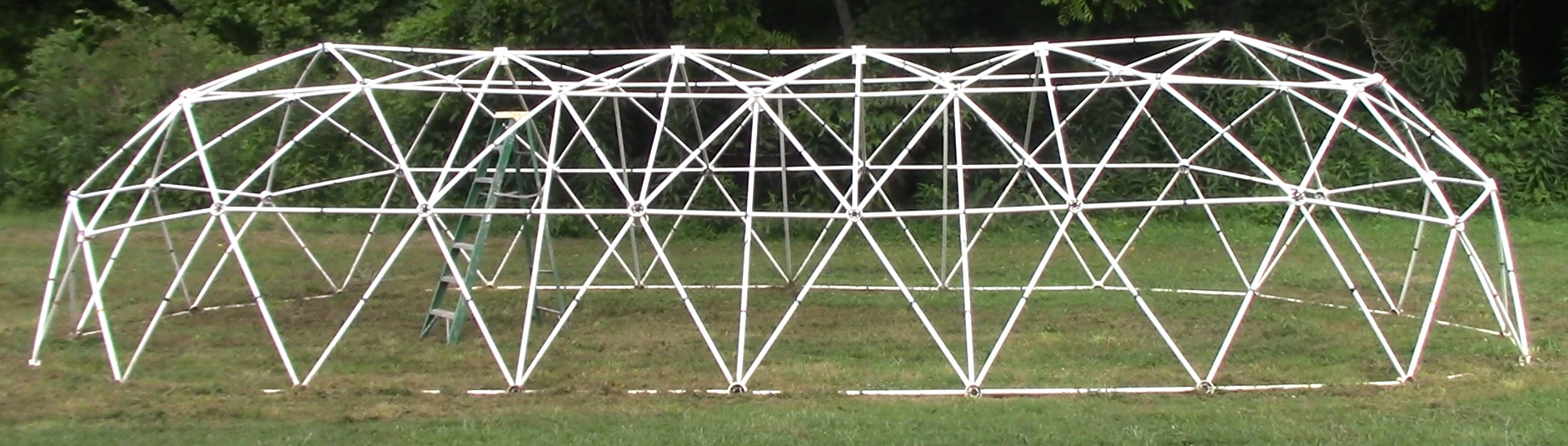

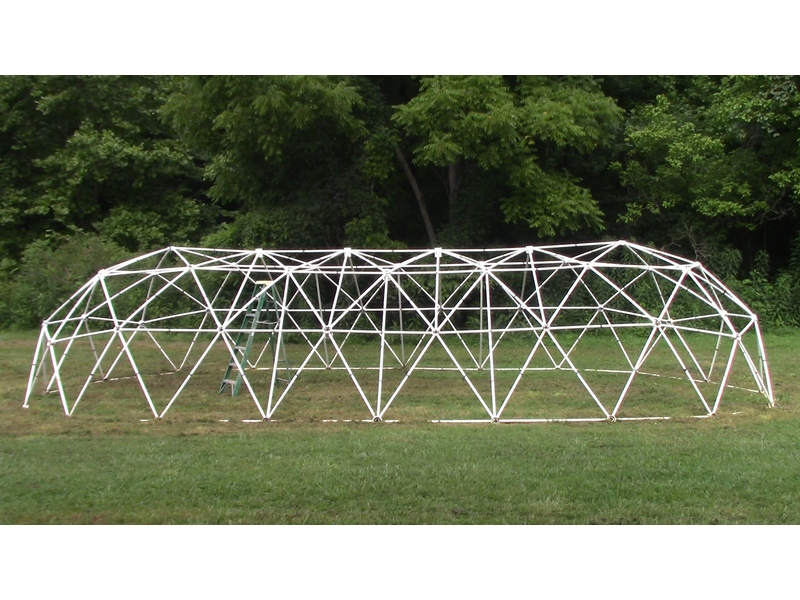

Download Tunnel Dome 4 Plans

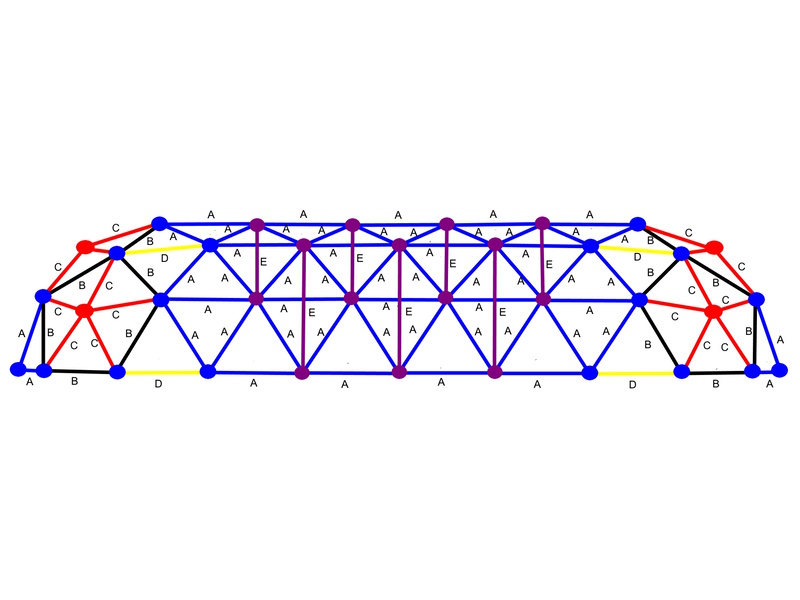

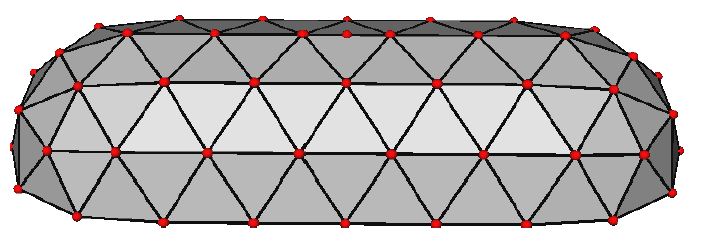

Build a Tunnel Dome with 4 Extensions
Each Download Contains:
A 26 page PDF Manual with color photographs that describes how you can easily manufacture our patented hubs.
A License that authorizes you to legally manufacture up to 3 Geodesic Domes using our patented hub design.
Complete details for making the geodesic dome struts for each dome.
A list of tools and materials needed to build the dome.
A step by step assembly manual or video, and a construction diagram.
Videos on how to make the struts from PVC or Bamboo.
A Geodesic Dome Calculator to help you build a dome of any size.
Ongoing Customer support by email or telephone to answer any of your technical questions.
Our 3 Types of Hubs.
Standard Hubs
The Standard Hubs are used for geodesic storage sheds, chicken coops, and other standard dome designs.
The Standard Hubs allows a Greenhouse to be covered with 1 layer of plastic on the outside of the dome.
The Standard Hubs can be made with a hand drill and hand saw.
The Dual Covering Hubs are for Insulated Greenhouses. They have a ridge on each edge that allows 2 layers of Greenhouse Plastic to be attached to the dome with zip ties, one layer on the outside, and one layer on the inside of the dome.
This provides a "dead air space" between the two layers for better insulation. This hub is only used for insulated greenhouses.
The Dual Covering Hubs requires a chop saw to make the hubs.
The 6" Super Hubs use 1.5" PVC pipe struts with 350 lb stainless steel zip ties. The Super Hubs can support over 300 lbs from a single hub,
and are used to build concrete domes and other heavy duty shelter domes.
The Super Hubs requires a drill press and a bandsaw to make the hubs.
Download a Complete Set of Instructions for Manufacturing a Geodesic Tunnel Dome
For Telephone Orders or to Pay by Check, Call us at: 1-931-858-6892

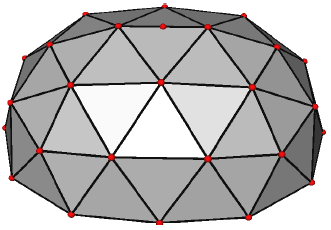

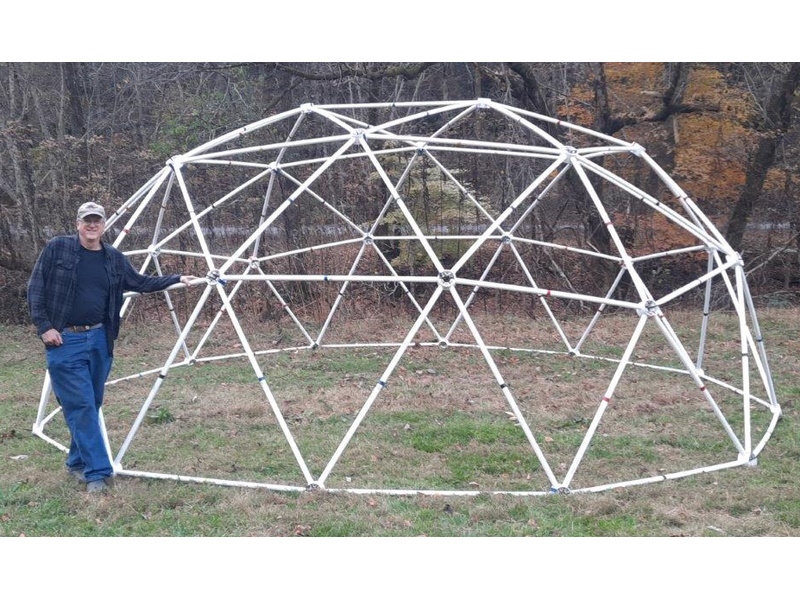

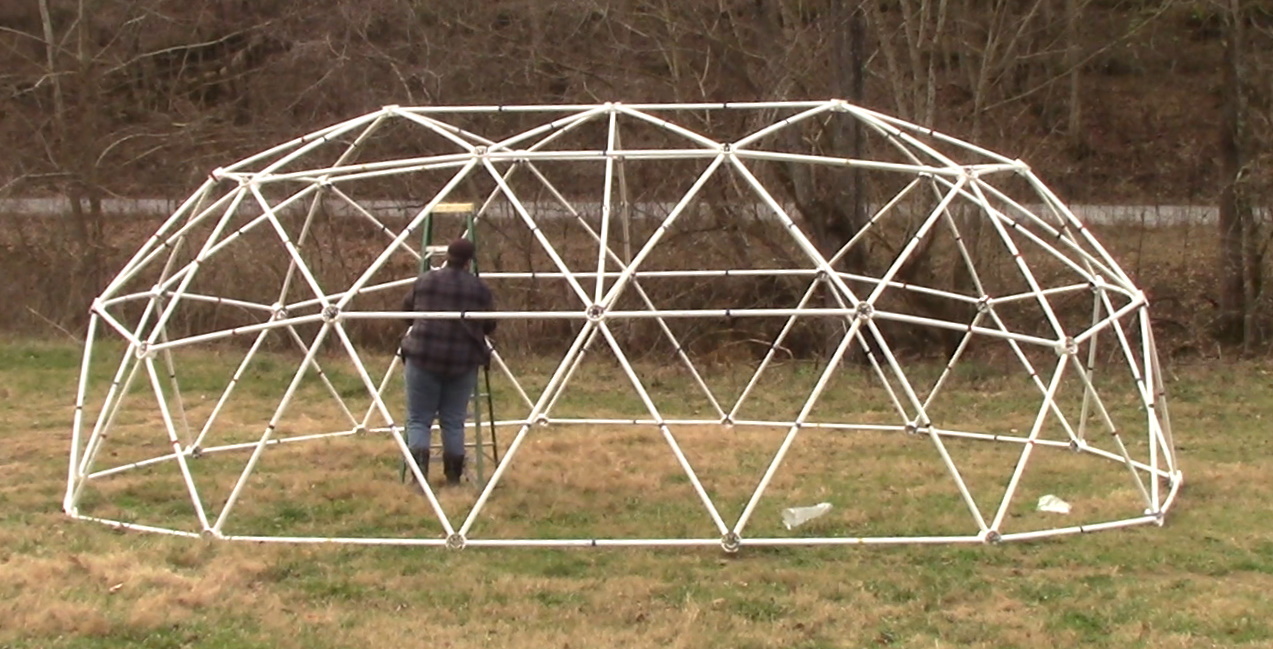

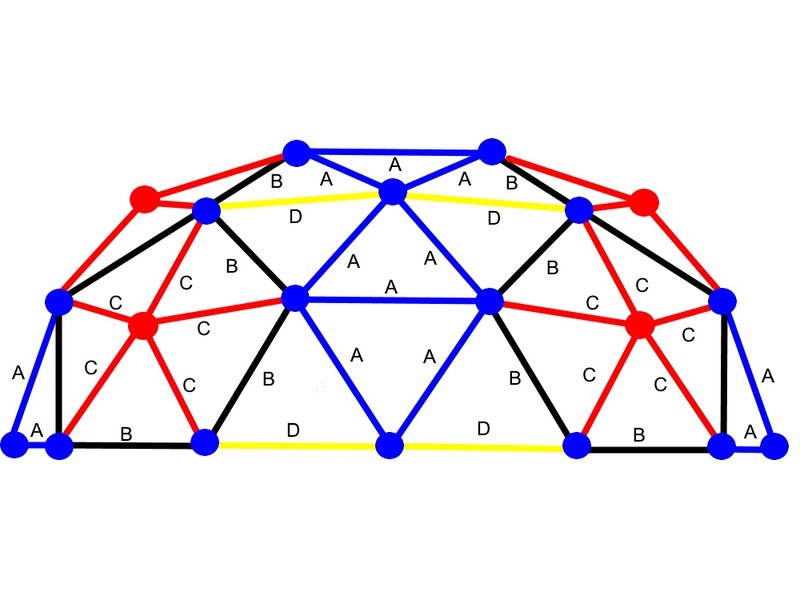

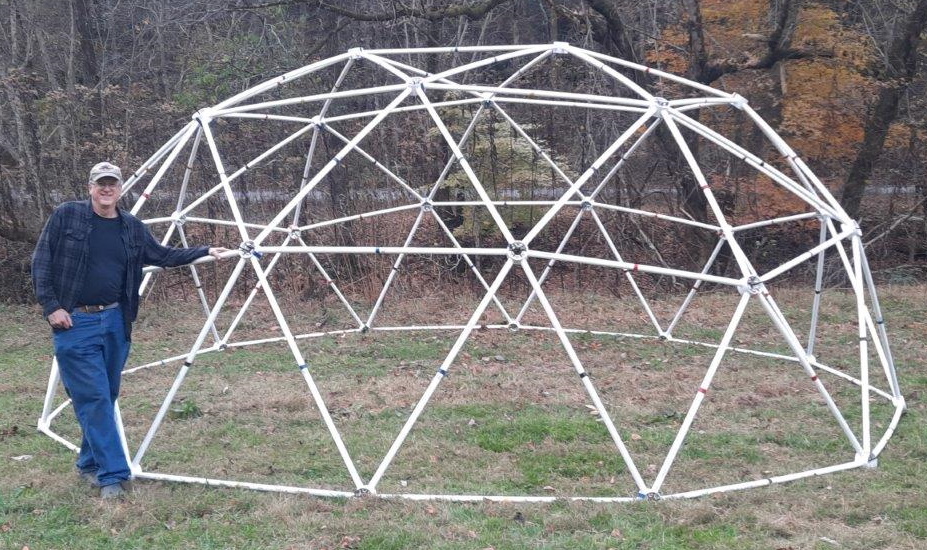

Geodesic Tunnel Dome with 0 Extensions 34 hubs, 87 struts.
