How to Use the Sphere Calculator

1. Select Hub Size:
Select "No Hubs" to get the true "chord" length for each strut, which is the full distance for the strut between each geodesic sphere vertex.
For most sphere construction methods, you will use the "No Hubs" selection.
With our Zip Tie Domes Hub Design, the geodesic sphere vertex is located in the middle of our "Center Ring".
When using our Hubs, the width of our Center Ring must be added to the strut length to give the true geodesic sphere dimensions.
Select Standard 4" Hubs for calculating domes with our 4" Standard Hubs or Dual Covering Hubs, which have a 2.375" Center Ring. These hubs are used with 1" PVC pipe for struts.
Select Super 6" Hubs for calculating domes with our new 6" Super Hubs, which have a 3.5" Center Ring. These hubs are used with 1.5" PVC pipe for struts.
Select Mega 8" Hubs for calculating domes with our proposed 8" Mega Hubs, which will have a 4.5" Center Ring. These hubs will be used with 2" PVC pipe for struts.

2. Feet or Meters
Click the button for "Meters" if you are using metric measurements.

3. Data Entry:
Enter a number with or without a decimal fraction in any of the number fields on the left. (For example, enter "5" or "3.3333")
Click the Calculate Button. All of the other numbers will be automatically calculated.
The Blue Struts are always the longest struts. If you know your longest strut length, enter your data for the longest strut length in the Blue Strut field.
To build a strong sphere, the longest strut should not be more than 6' long.

Cost Calculation and Material Utilization Chart
The default "Length of Pipe" for cutting your struts has been set to 10'. You can change this to 20' or whatever length of pipe you have to cut for your struts.
You can also update the "Cost Per Pipe" amount, and click the Calculate field, and the "Total Cost of Materials" amount will be calculated at the bottom of this section.
If you are cutting 4' struts, consider using 20' lengths of pipe, as there will be less waste as compared to cutting 4' lengths from 10' pipe.

4 Frequency Sphere Calculator


4v Sphere

Select Hub Size
No Hubs:     Standard 4" Hubs:     Super 6" Hubs:     Mega 8" Hubs:
Feet:   Meters:
Enter

Convert to Feet & Inches
Chord


Numbers Only

Sphere Radius/Height

0' 0"



Numbers Only

Length of 60 Red "A" Struts

0' 0"

.25318



Numbers Only

Length of 60 Yellow "B" Struts

0' 0"

.29524



Numbers Only

Length of 120 Brown "C" Struts

0' 0"

.29453



Numbers Only

Length of 120 Black "D" Struts

0' 0"

.31287



Numbers Only

Length of 60 Blue "E" Struts

0' 0"

.32492



Numbers Only

Length of 60 Orange "F" Struts

0' 0"

.29859



Numbers Only

Sphere Diameter

0' 0"



Numbers Only

Sphere Equator Circumference

0' 0"




12

Number of Red 5-Way Hubs



150

Number of Blue 6-Way Hubs



162

Number of Center Rings



960

Number of Zip Ties to Construct the Sphere



0

Sphere Surface Area (Square )



0

Sphere Volume (Cubic )



0

Total Length of All Struts Added Together ()

Cost Calculation and Material Utilization Chart






Length of Pipe:

Cost Per Pipe:



Red "A" Struts



Red "A" Strut Units Entered:

0

Feet and Inches:

0'0"




Number of Pipes needed to Create (60) Red "A" Struts:

0




Number of Red "A" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Red "A" Struts Created from the first 0 Pipes:

0




Number of Red "A" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 60 Red "A" Struts:

0



Yellow "B" Struts



Yellow "B" Strut Units Entered:

0

Feet and Inches:

0'0"




Number of Pipes needed to Create (60) Yellow "B" Struts:

0




Number of Yellow "B" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Yellow "B" Struts Created from the first 0 Pipes:

0




Number of Yellow "B" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 60 Yellow "B" Struts:

0



Brown "C" Struts



Brown "C" Strut Units Entered:

0

Feet and Inches:

0'0"




Number of Pipes needed to Create (120) Brown "C" Struts:

0




Number of Brown "C" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Brown "C" Struts Created from the first 0 Pipes:

0




Number of Brown "C" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 120 Brown "C" Struts:

0



Black "D" Struts



Black "D" Strut Units Entered:

0

Feet and Inches:

0'0"




Number of Pipes needed to Create (120) Black "D" Struts:

0




Number of Black "D" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Black "D" Struts Created from the first 0 Pipes:

0




Number of Black "D" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 120 Black "D" Struts:

0



Blue "E" Struts



Blue "E" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (60) Blue "E" Struts:

0




Number of Blue "E" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Blue "E" Struts Created from the first 0 Pipes:

0




Number of Blue "E" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 60 Blue "E" Struts:

0



Orange "F" Struts



Orange "F" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (60) Orange "F" Struts:

0




Number of Orange "F" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Orange "F" Struts Created from the first 0 Pipes:

0




Number of Orange "F" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 60 Orange "F" Struts:

0




COST OF MATERIALS GRAND TOTALS:




Total Waste for All Struts:

0




Number of Uncut Pipe/Materials Needed:

0




Total Cost of Materials @ $4.50 Each:

$



Sphere Weight Chart


Weight Chart 1" PVC Sch.40 1" PVC Sch.80 1.5" PVC Sch.40 2" PVC Sch.40 3/4" EMT 1" EMT 5/8" Iron Rebar #5 3/4" Iron Rebar #6 1/2" Basalt Rebar #4 5/8" Basalt Rebar #5
Lbs Per Linear Ft .32 .41 .51 .68 .435 .64 1.043 1.502 .237 .46
60 "A" Struts 0 0 0 0 0 0 0 0 0 0
60 "B" Struts 0 0 0 0 0 0 0 0 0 0
120 "C" Struts 0 0 0 0 0 0 0 0 0 0
120 "D" Struts 0 0 0 0 0 0 0 0 0 0
60 "E" Struts 0 0 0 0 0 0 0 0 0 0
60 "F" Struts 0 0 0 0 0 0 0 0 0 0
Total Weight of Struts (lbs) 0 0 0 0 0 0 0 0 0 0
Weight of Hubs, Rings, Zip Ties 51.7 51.7 128.3 230.0 51.7 51.7 51.7 51.7 51.7 51.7
Total Sphere Weight (lbs) 0 0 0 0 0 0 0 0 0 0

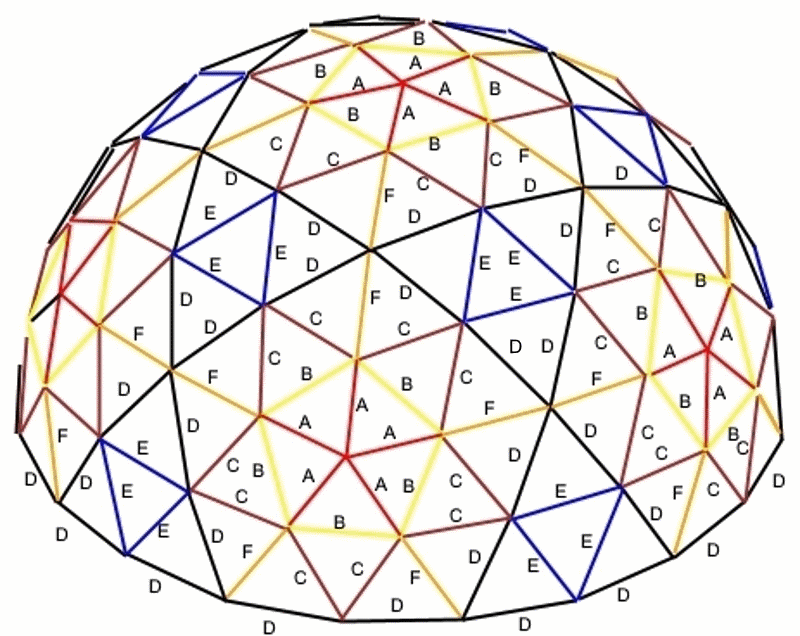

4 Frequency Tessellation Diagram

4v Geodesic Sphere Tessellation Diagram



Red "A" Chord Factor:   .25318

Yellow "B" Chord Factor:   .29524

Brown "C" Chord Factor:   .29453

Black "D" Chord Factor:   .31287

Blue "E" Chord Factor:   .32492

Orange "F" Chord Factor:   .29859

Sphere Panels / Coverings



A 4v Sphere Will Require Panels / Coverings for:





60 A-B-A Isoceles Triangles

60 C-B-C Isoceles Triangles




A-B-A Triangles

C-B-C Triangles



120 C-D-F Scalene Triangles

60 D-E-D Isoceles Triangles

20 E-E-E Equilateral Triangles

C-D-F Triangles

D-E-D Triangles

E-E-E Triangles

Total Triangles: 320

--------------------------------------------



Triangle Dimensions



60 A-B-A Isoceles Triangles


A-B-A Triangle
Base = "B"
A-B-A Triangles
Altitude Xb Decimal 0
Feet and Inches 0 0"

A-B-A Triangle
Base = "A"
A-B-A Triangles
Altitude Xa Decimal 0
Feet and Inches 0 0"


A-B-A
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

A

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

B

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each A-B-A Triangle 0 Square



60 C-B-C Isoceles Triangles


C-B-C Triangle
Base = "B"
C-B-C Triangles
Altitude Xb Decimal 0
Feet and Inches 0 0"

C-B-C Triangle
Base = "C"
C-B-C Triangles
Altitude Xc Decimal 0
Feet and Inches 0 0"


C-B-C
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

B

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

C

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each C-B-C Triangle 0 Square



120 C-D-F Scalene Triangles

C-D-F Triangle
Base = "C"
C-D-F Triangles
Altitude Xc Decimal 0
Feet and Inches 0 0"
C-D-F Triangle
Base = "D"
C-D-F Triangles
Altitude Xd Decimal 0
Feet and Inches 0 0"
C-D-F Triangle
Base = "F"
C-D-F Triangles
Altitude Xf Decimal 0
Feet and Inches 0 0"

C-D-F
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

C

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

D

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

F

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each C-D-F Triangle 0 Square



60 D-E-D Isoceles Triangles


D-E-D Triangle
Base = "E"
D-E-D Triangles
Altitude Xe Decimal 0
Feet and Inches 0 0"

D-E-D Triangle
Base = "D"
D-E-D Triangles
Altitude Xd Decimal 0
Feet and Inches 0 0"


D-E-D
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

D

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

E

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each D-E-D Triangle 0 Square



20 E-E-E Equilateral Triangles


E-E-E Triangle
Base = "E"
E-E-E Triangles
Altitude Xe Decimal 0
Feet and Inches 0 0"


E-E-E
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

E

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each E-E-E Triangle 0 Square

This Sphere Calculator was written in November 2017

by johnhurt.com

Powered by Notepad++



ZURB Foundation 5.0

Responsive Mobile Design

This Site Uses

ZURB Foundation

The most advanced responsive front-end framework in the world.

http://foundation.zurb.com/







Flag of Scotland
Alba gu bráth - Scotland Until Judgment

A Man's A Man For A' That

"Is there for honest Poverty
That hings his head, an' a' that;
The coward slave-we pass him by,
We dare be poor for a' that!
For a' that, an' a' that.
Our toils obscure an' a' that,
The rank is but the guinea's stamp,
The Man's the gowd for a' that.

What though on hamely fare we dine,
Wear hoddin grey, an' a that;
Gie fools their silks, and knaves their wine;
A Man's a Man for a' that:
For a' that, and a' that,
Their tinsel show, an' a' that;
The honest man, tho' e'er sae poor,
Is king o' men for a' that.

Ye see yon birkie, ca'd a lord,
Wha struts, an' stares, an' a' that;
Tho' hundreds worship at his word,
He's but a coof for a' that:
For a' that, an' a' that,
His ribband, star, an' a' that:
The man o' independent mind
He looks an' laughs at a' that.

A prince can mak a belted knight,
A marquis, duke, an' a' that;
But an honest man's abon his might,
Gude faith, he maunna fa' that!
For a' that, an' a' that,
Their dignities an' a' that;
The pith o' sense, an' pride o' worth,
Are higher rank than a' that.

Then let us pray that come it may,
(As come it will for a' that,)
That Sense and Worth, o'er a' the earth,
Shall bear the gree, an' a' that.
For a' that, an' a' that,
It's coming yet for a' that,
That Man to Man, the world o'er,
Shall brothers be for a' that.

Robert Burns - 1795

To place an order online, visit our Online Catalog.

For a telephone order, call us at 1-931-858-6892.

Or, go to our Contact Us page to send us an email.

Follow Zip Tie Domes on FaceBook, YouTube, Pinterest and Instagram
