Download Plans for Manufacturing a 2v Geodesic Dome with Standard Hubs
2v Geodesic Domes Examples
2v Geodesic Dome Plans

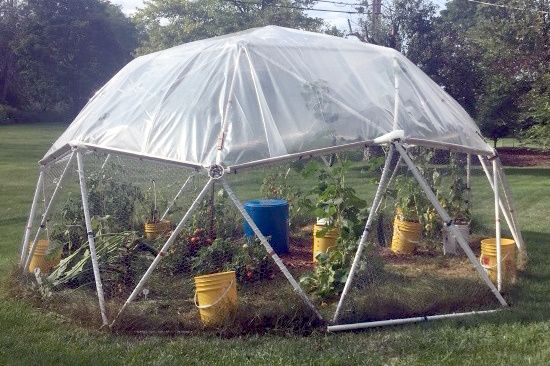

2v Geodesic Greenhouse

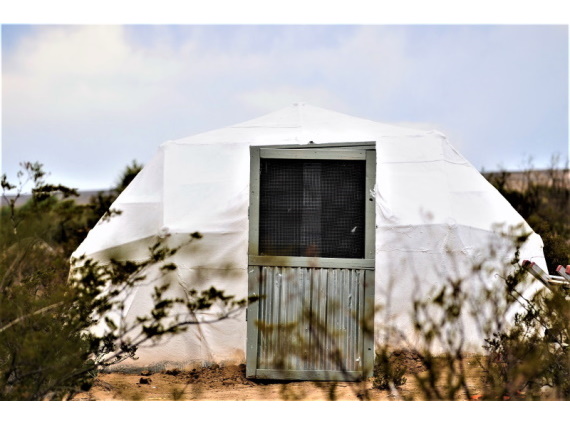

2v Mobile Chicken Coop Dome
2v Concrete Dome

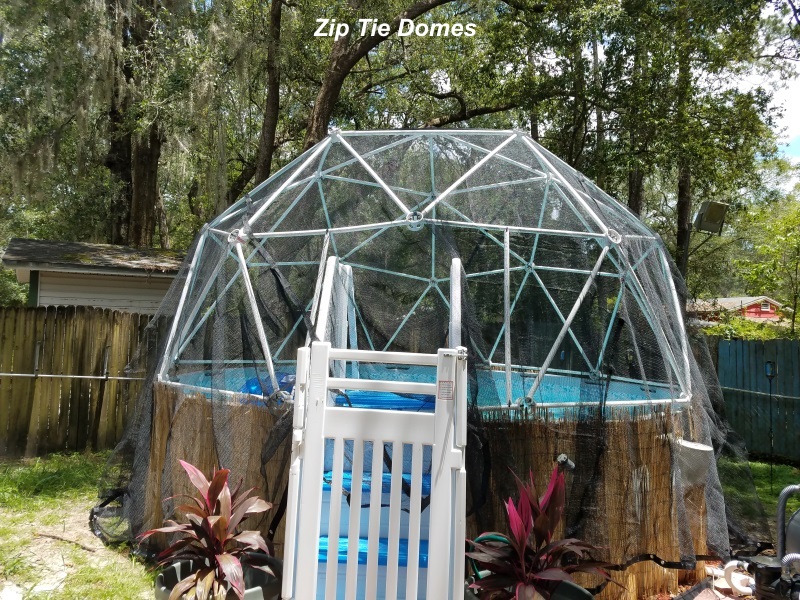

2v Swimming Pool Cover Dome
26 hubs, 65 struts.
The 2v Dome is the easiest Geodesic Dome to build.
Listed 2v Dome Sizes: 11' wide, 5.5' tall to 20' wide, 10' tall.
You can build larger or smaller 2v Domes by adjusting the strut lengths, contact us for details.
2v Standard Hubs
Very Easy to Manufacture.
5-way Red Hubs
6-way Blue Hubs
The Standard Hubs are used for geodesic greenhouses, sheds, chicken coops, swimming pool covers, and other standard dome designs.
The Standard Hubs allows a Greenhouse to be covered with 1 layer of plastic on the outside of the dome.
The Standard Hubs are the easiest Dome Hubs to manufacture.
Tools Needed to Manufacture the Standard Hubs: A Power Hand Drill and Carpenter's Hand Saw will work, but a Chop Saw and Drill Press makes manufacturing the hubs much easier.
Each 2v Download Contains:
A Manufacturing Manual with step by step details on how to make our patented Standard hubs. (26 pages with color photographs for each step.)
The correct bit size for drilling the hub outer collar for each strut diameter and type.
Complete instructions for using 1", 3/4", 1/2" Schedule 40 PVC Pipe, or 1", 3/4", 1/2" EMT Conduit, or 32mm, 25mm OD Metric Pipe for making your own Geodesic Dome struts.
The lengths for cutting the geodesic dome struts to make each dome size.
Videos on how to make the struts from PVC or Bamboo.
An assembly manual, assembly video and construction diagram for building the dome.
A 2v Geodesic Dome Calculator to help you build a dome of any size.
A License that authorizes you to legally manufacture up to 3 Geodesic Domes using our patented hub design.
Ongoing Customer support by email or telephone to answer any of your technical questions.
Download a Complete Set of Instructions and Manufacturing License for Building a 2v Geodesic Dome Using our Patented Hub Design
2v Geodesic Dome Plans (with Standard Hubs) - $19.50 26 hubs, 65 struts.
Download 2v Geodesic Dome Plans (with Standard Hubs) Price: $19.50
Secure Credit Card Processing by
All digital download sales are final.
If you have any questions, you can call us at 1 (931) 858-6892.
For telephone orders or questions, call us at 1-931-858-6892.
Or, go to our Contact Us page to send us an email.
