2v Geodesic Dome Greenhouse Kit
16' Wide, 8' Tall
with Dual Covering Hubs

Weighs 113 lbs with 222 Square Feet of Floor Space

30 Day Return Policy, 2 Year Warranty, All Parts Made in USA.

16' wide with Dual Covering Hubs - 2v Geodesic Dome Greenhouse Kit - $495.00

  • Geodesic Dome Kit
  • Geodesic Dome Kit
  • Geodesic Dome Kit
  • Geodesic Dome Kit
  • Geodesic Dome Kit
  • Geodesic Dome Kit
  • Geodesic Dome Kit
  • Geodesic Dome Kit
  • Geodesic Dome Kit
  • Geodesic Dome Kit

2v Geodesic Dome

16' Std. 2v Dual Covering Geodesic Dome Greenhouse Kit


This kit will build an 8 ft. tall, 16 ft. diameter 2v Dual Covering Geodesic Dome Greenhouse, with 222 square feet of floor space.

Dual Covering Hub

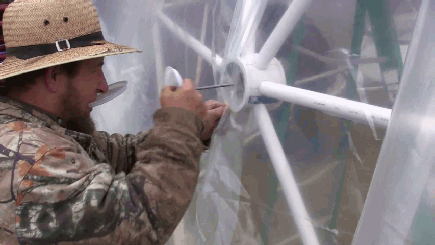

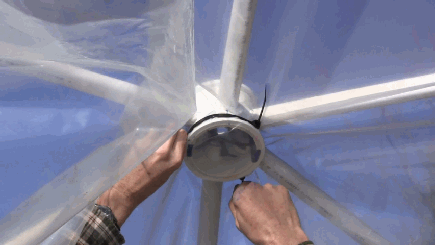

This kit comes with our "Dual Covering Hubs", which allows two layers of Greenhouse Plastic to be attached, one on the inside, and one on the outside of the dome Click Here to view this kit with "Standard Hubs" which allows only one layer of Greenhouse Plastic, Tarp, or Chicken Wire to be stretched over the outside of the dome. Click Here to learn more about the difference between our Standard and Dual Covering Hubs.

This 16' Dual Covering Hub Greenhouse kit requires two 28' x 28' sheets of Greenhouse Plastic for covering the inside and outside of the dome.

Greenhouse Plastic is not included in the kit, but various types of Greenhouse Plastic can be purchased online at Farmtek Grower's Supply or from your local Greenhouse Supply store.

This item is in stock, and will ship out the next business day.

All parts guaranteed with replacement for two (2) years from date of purchase.

All Parts Are Made In USA


Customer Reviews for the 2v Geodesic Dome Greenhouse

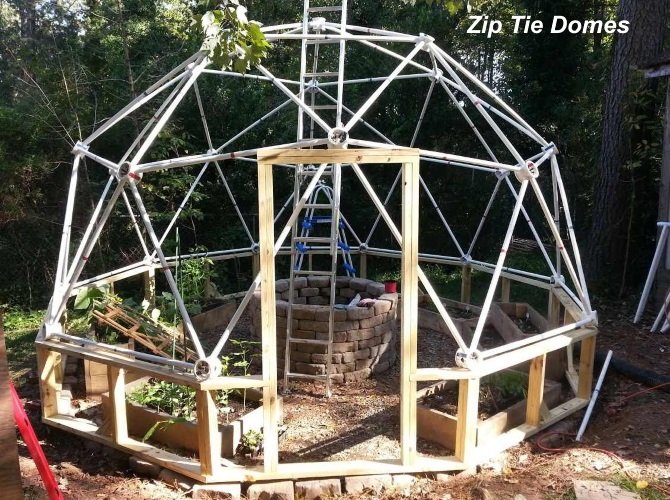

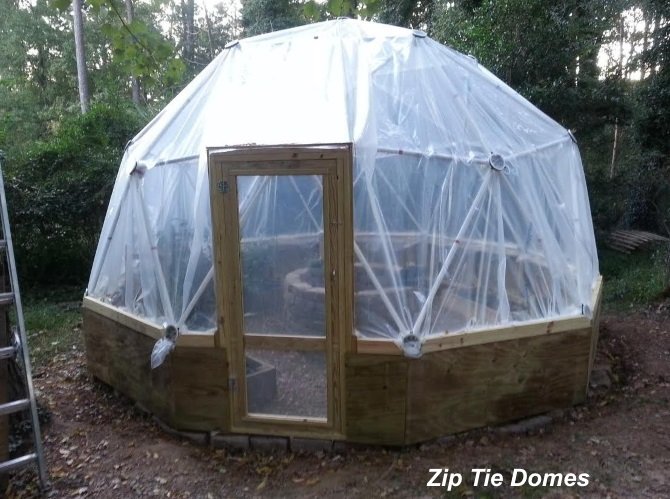

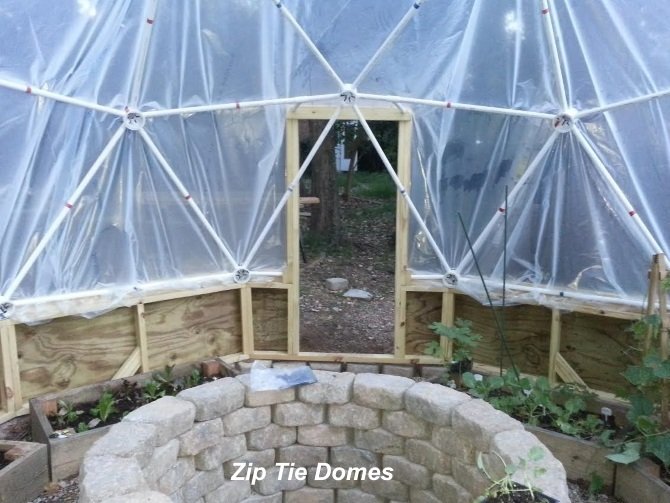

Nathan Byrd - "Yep, we made it into a greenhouse dome and built a foundation and door. It's holding up pretty well against the cold weather so far!"

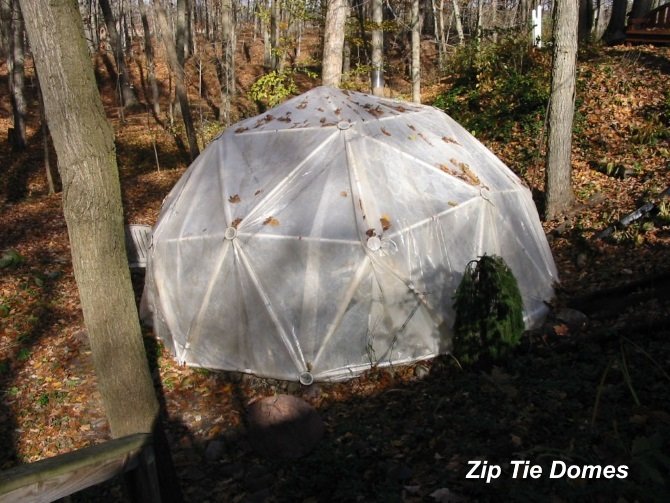

Dale Stalter - "We had no trouble with putting the dome together. We put two layers of plastic on it. The plastic came from a greenhouse so it was heavier then other types of plastic."

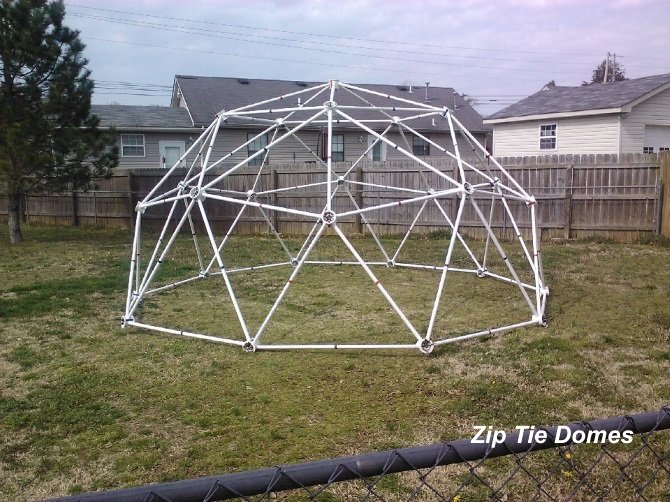

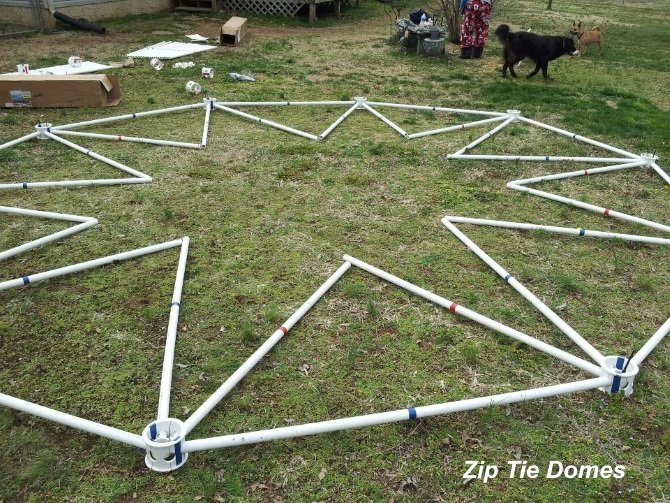

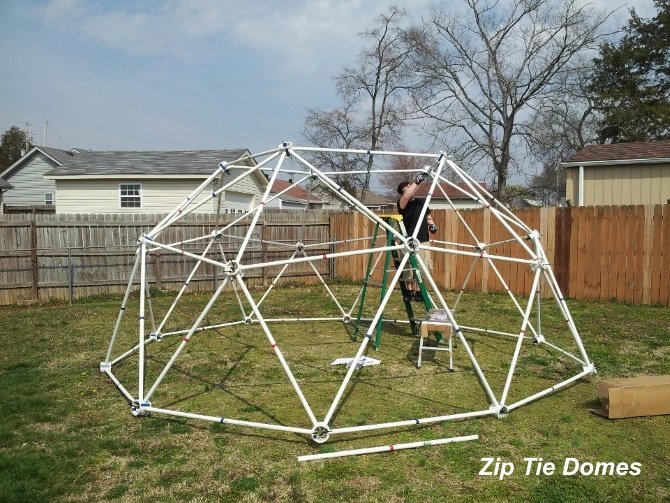

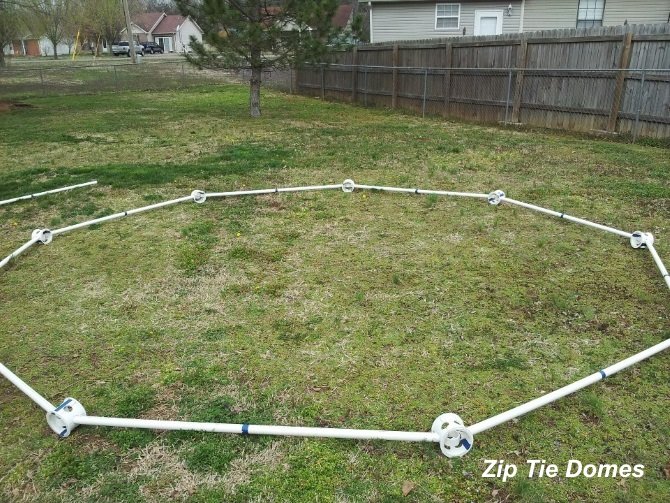

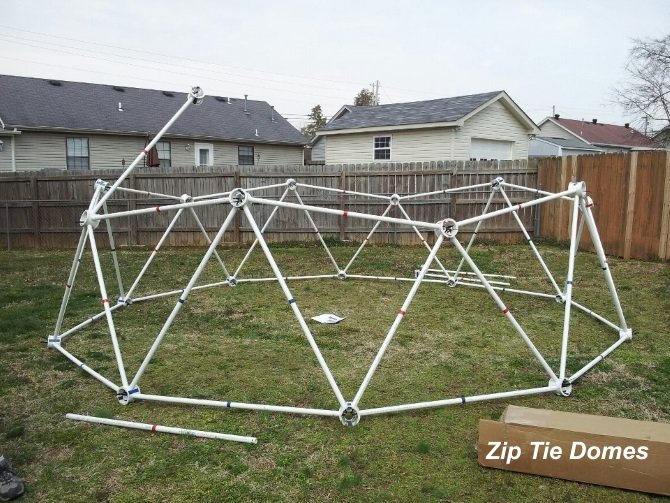

Franc Stratton - "My daughter and I took about 2 hours to complete the 16-foot dome, and we found that all we had to do was to follow the clear and easy instructions."

William Randazzo - Painted struts and hubs for greenhouse dome.

Mark Leathers - Geodesic Dome with a framed door, and set on a 3 foot kneewall.

Mary Klinghard - "We were actually thinking of purchasing a couple more, one for our farm in Rossville, Ga, and another for an elementary school, where we are building a sustainability garden."

Allyson Packer - "Here is a picture of our dome on a frozen lake. We built a greenhouse onto the front of it and constructed a shell made from a layer of recycled denim insulation and Tyvek. The dome was easy to assemble and we were really pleased with it."

Cyd Smillie - "Thank you for making such a delightful product that was fun and easy for the students."

Amy Boortz - "LOVE the dome! I have frequent visitors and extoll the virtues of it every chance I get."

Heather Lucero - "I love my Dome. Thank you."

Martin Fitzpatrick - "Using it to grow orchids."

Click Here to See a Complete List of Our Customer Reviews


This Geodesic Dome Greenhouse Kit Contains:

  • 35 Blue "A" Struts - 1" PVC Pipe - 5' in length
  • 30 Red "B" Struts - 1" PVC Pipe - 4' 5" in length
  • 6 Dual Covering Red 5-way Hubs
  • 20 Dual Covering Blue 6-way Hubs
  • 26 Center Rings
  • 400 Heavy Duty 120 Lb Nylon Zip Ties for Dome Construction and Attaching the Greenhouse Plastic to the Hubs.
  • Geodesic Dome Greenhouse Assembly Instruction Manual
  • 2 Extra Struts to create a door for the greenhouse.
  • 10 1.315" Greenhouse Fabric Clips for securing the Greenhouse Plastic to the bottom struts of the dome.
  • Full Refund for any reason for 30 days from Date of Purchase.
  • Guaranteed replacement of any defective part for 2 years from date of purchase.
  • NOT INCLUDED: Two 28' x 28' sheets of Greenhouse Plastic

Geodesic Dome Greenhouse Kit Contents:


30 Red and 35 Blue Struts
Made from 1" Schedule 40 PVC Pipe

20 Dual Covering Blue Hubs

6 Dual Covering Red Hubs

26 Center Rings

400 Heavy Duty Nylon Zip Ties for Dome Construction and Attaching the Greenhouse Plastic to the Hubs.

2 Extra Struts for Building the Greenhouse Door

10 Greenhouse Fabric Clips

Our Guarantee

  (1) We guarantee to replace any defective part for two (2) years from date of purchase.

  (2) Lifetime Customer Support. Call us at (931) 858-6892 and we will answer any question, or resolve any problem you have with our products.
